Series 86 Casement window, front elevation, black frame
Series 86 Casement window, open · three-quarter, black frame
Series 86 Casement window, thermal break, black frame

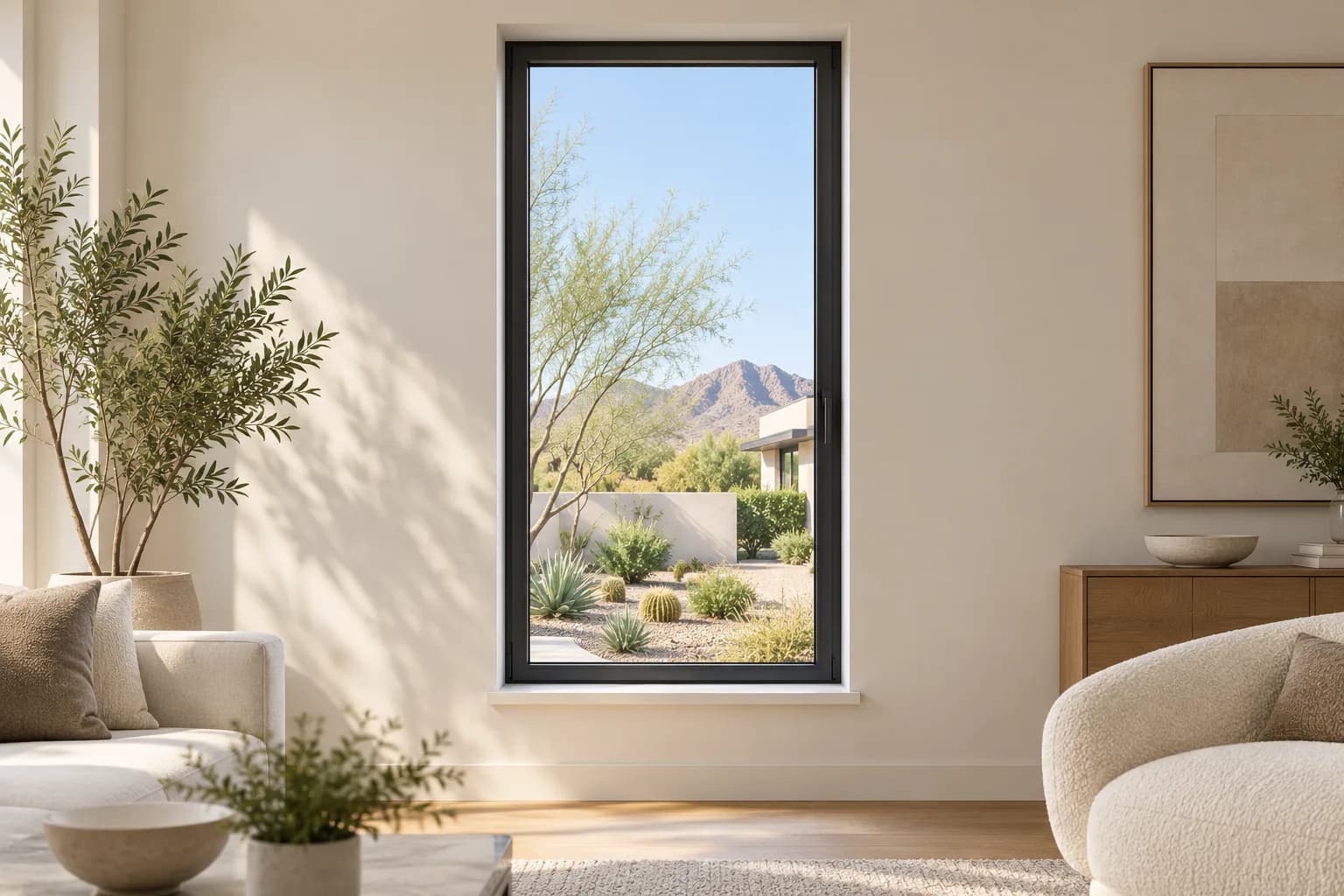

Series 86 Casement window, living room, black frame

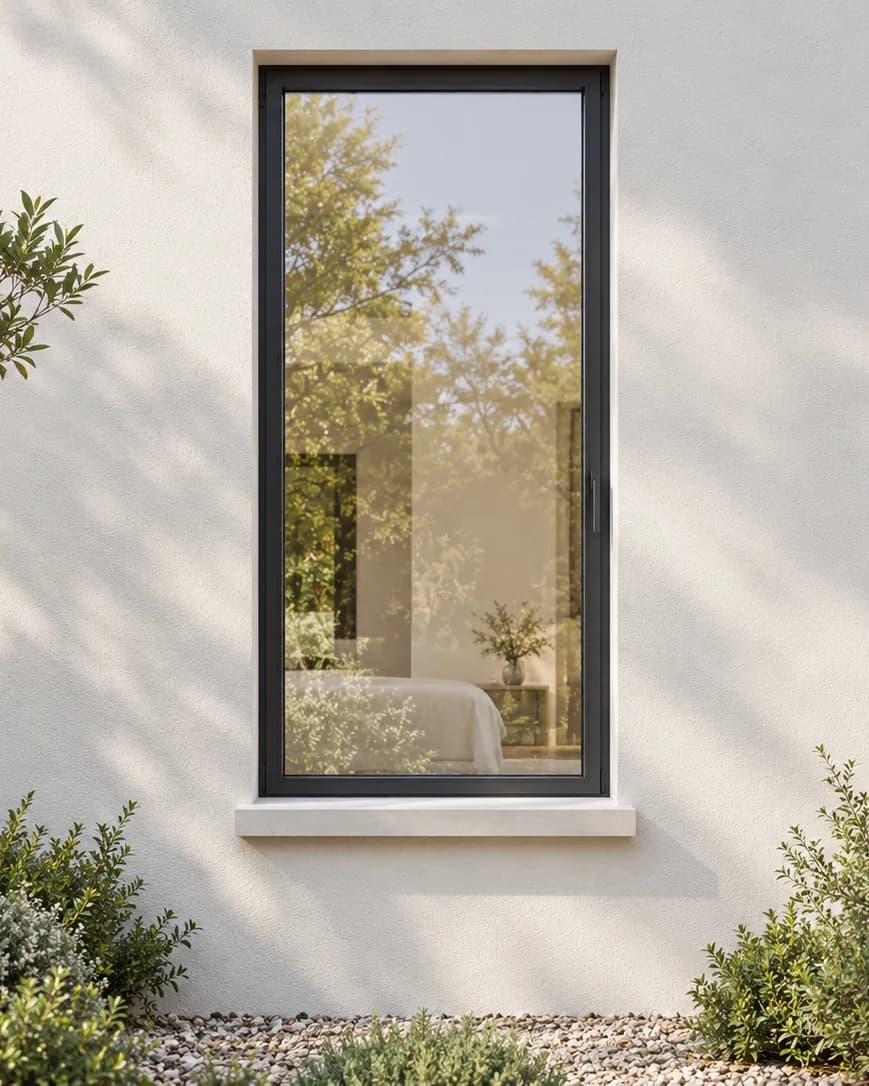

Series 86 Casement window, exterior, black frame
Series 86 Casement window, kitchen · over the sink, black frame
Front elevation1 / 6
Series 86

Casement window

Size
31.5 × 59"
Frame
Black
Glass
Quantity
Unit price—
Billed area—
Estimate · includes freight and duty to Las Vegas · excludes delivery
—
  • Factory-direct
  • Made to order
  • NFRC · U 0.31–0.42
  • AAMA/WDMA/CSA 101 · CW-PG50
  • Ops confirms by email
Lead time · production + transit— wks

A slim outswing casement in black aluminum.

Series 86 outswing casement window: one sash on Italian friction stays with a Belgian lock, in the slim frame family that also makes matching fixed lites for mulled elevations.

  • Outswing sash on Master (Italy) friction stays
  • Sobinco (Belgium) lock
  • Matching fixed lites in the same frame family
  • Ensinger polyamide thermal break
Made to the quoted size
Metric800 × 1500 mm
Sash1 · outswing

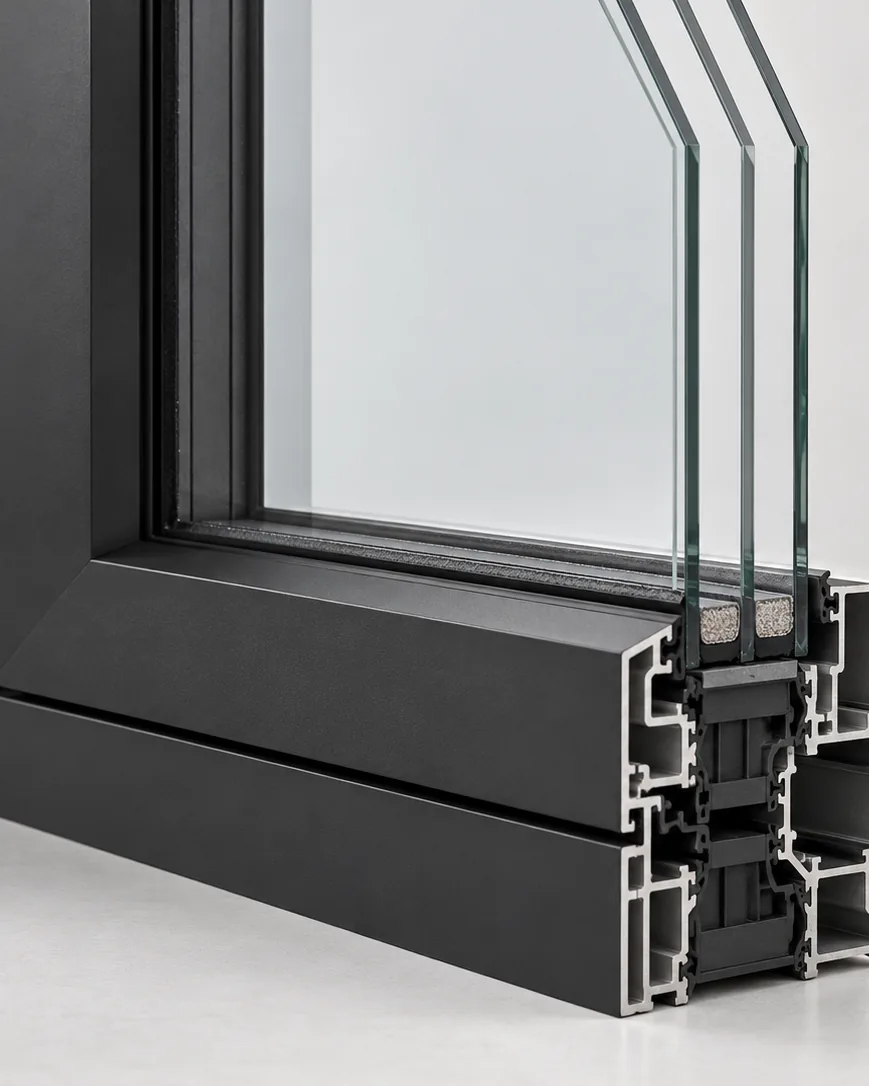

Series 86 Casement window, thermal break, black frame
01

A frame that breaks the cold

An Ensinger polyamide strip separates the inside and outside aluminum, so frame conduction is fixed and the glass unit sets the rating.

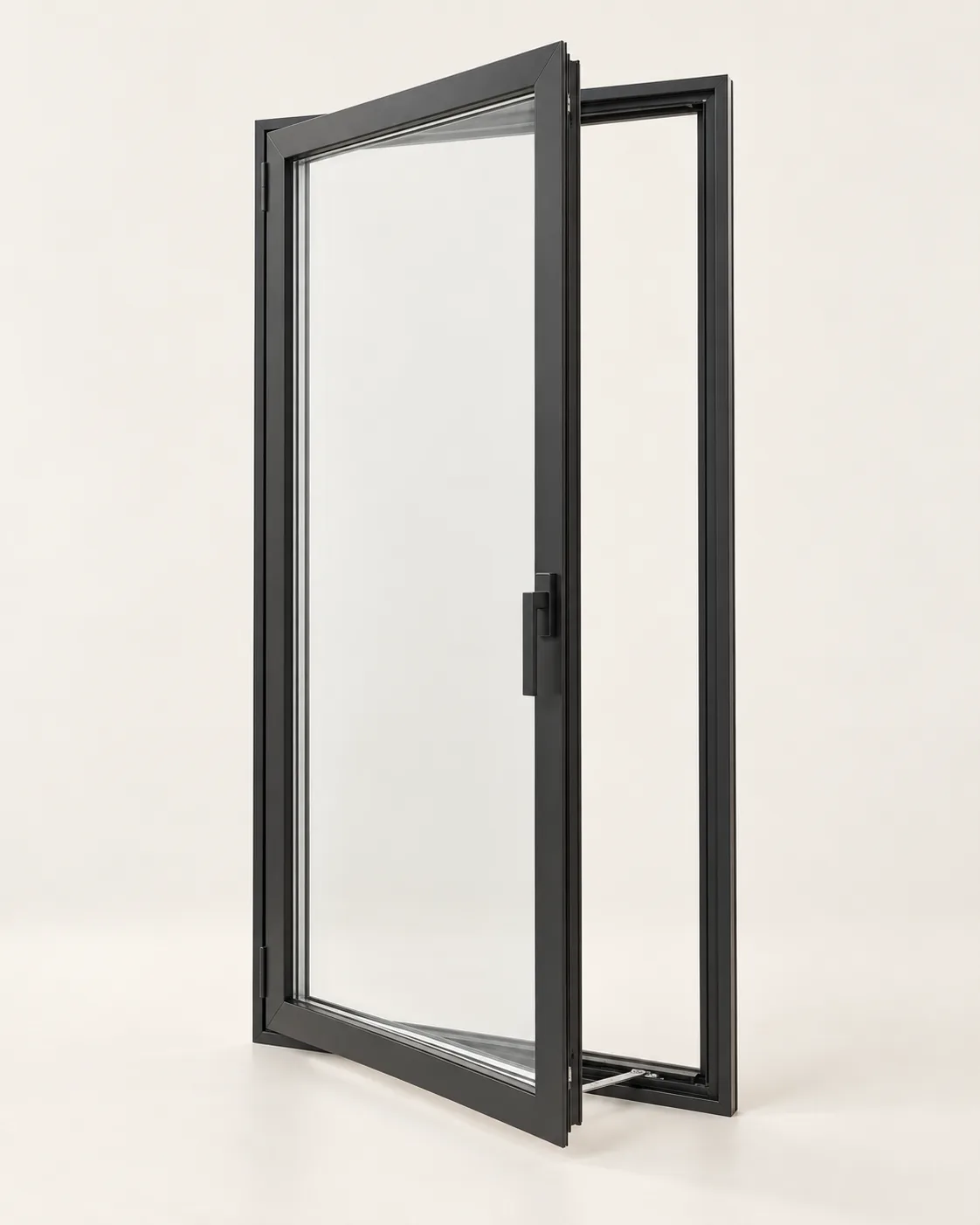

Series 86 Casement window, open · three-quarter, black frame
02

Built on a robotic line

Profiles are cut, CNC end-milled and assembled on an automated line, so corner joints and hardware pockets repeat to the tenth of a millimetre on every unit.

Series 86 Casement window, front elevation, black frame
03

Rated and labeled

Thermal ratings are certified under NFRC 100, 200 and 500 and carry the temporary NFRC label. Every option meets California's Section 150.0(q) maximum of U 0.58.

From the factory

Built on a robotic line.

Profiles are cut, machined and assembled on an automated line with CNC end-milling. Each unit is made after ops confirms the order and ships by the container to Las Vegas.

  1. 01Ops confirms by email
  2. 02Production
  3. 03QC and crating
  4. 04Ocean and drayage to Las Vegas
  5. 05Pickup or delivery from Las Vegas

FAQ

Double or triple insulating glass, argon filled, low-E and tempered.
