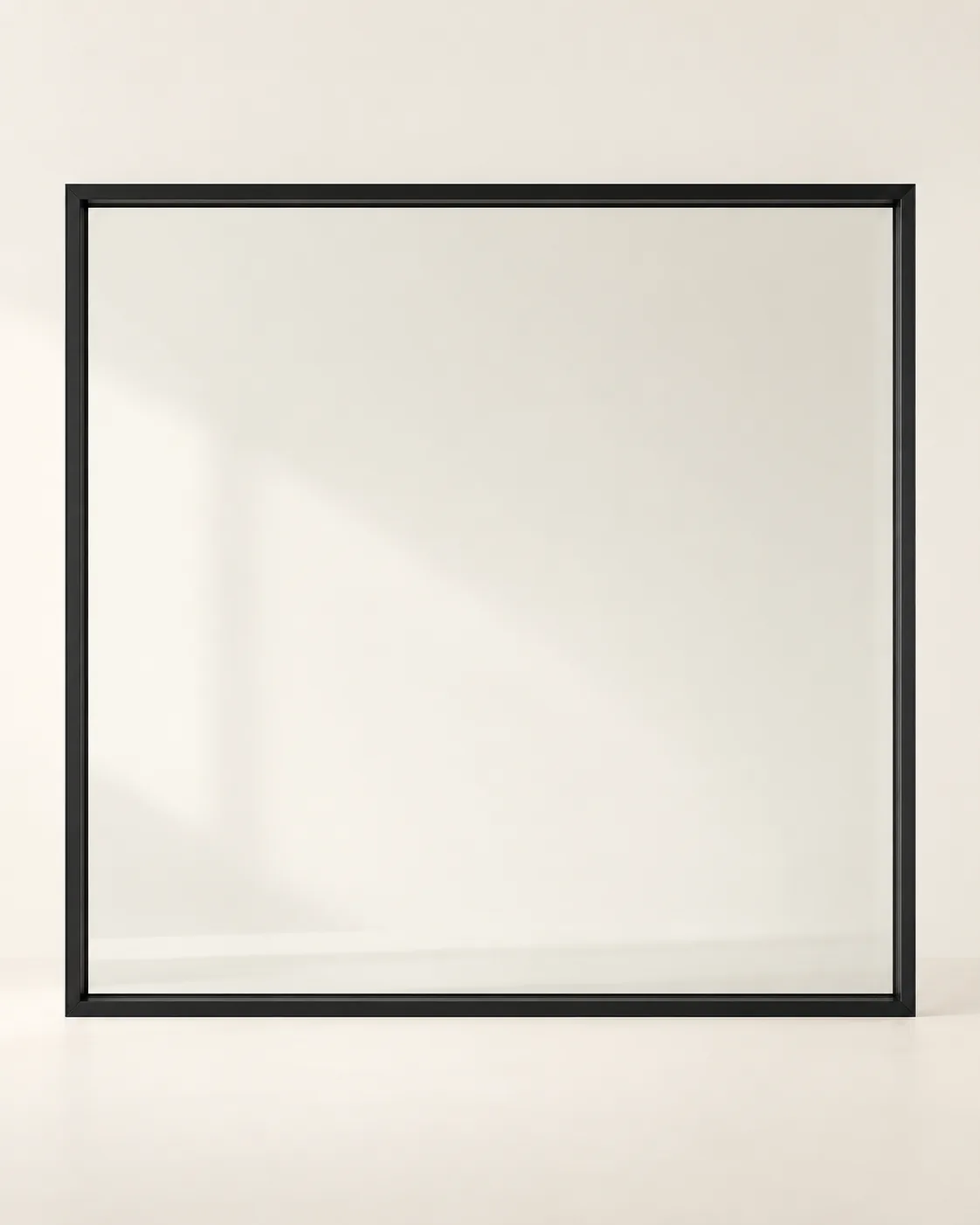

Series 83 Fixed window, front elevation, black frame

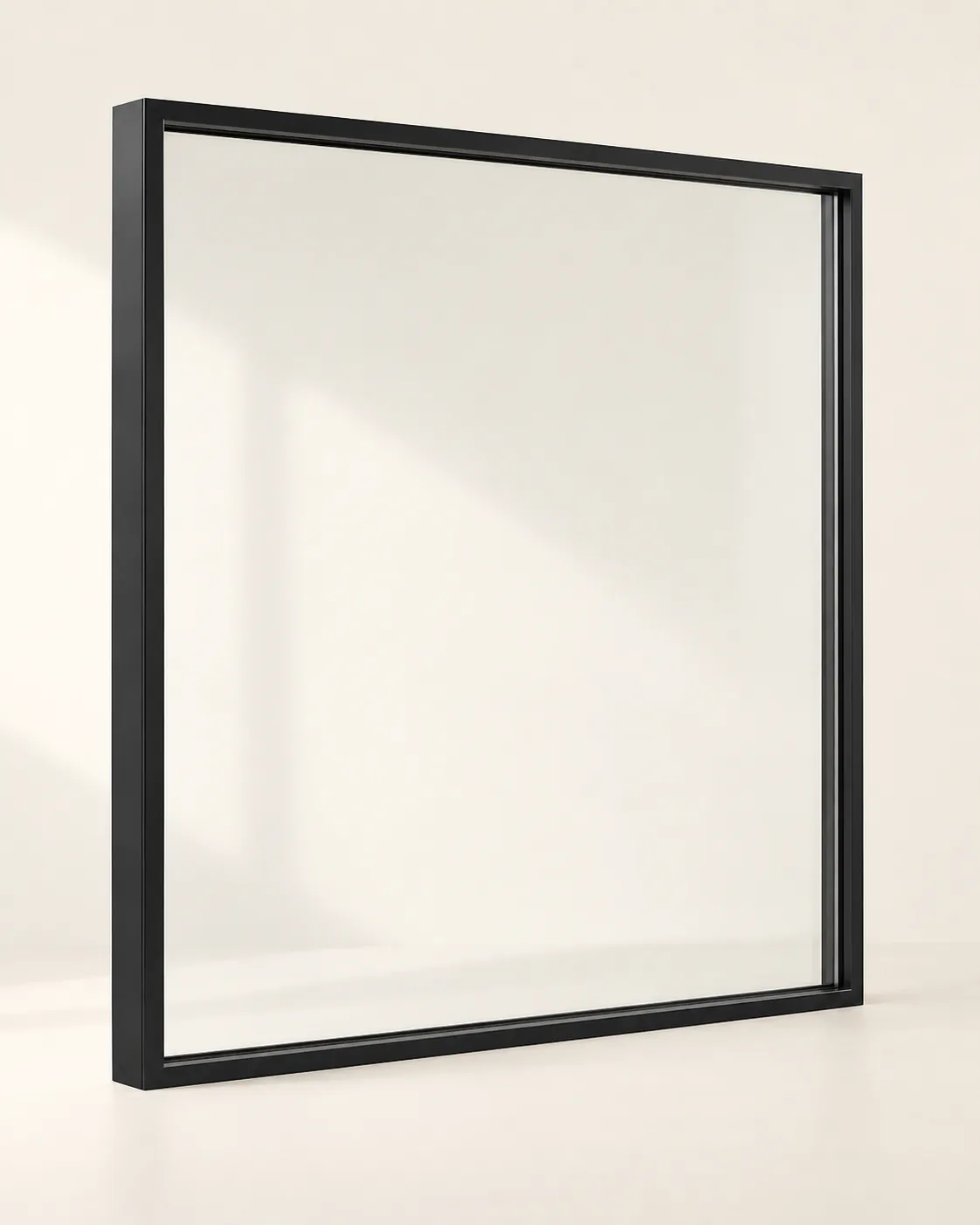

Series 83 Fixed window, open · three-quarter, black frame
Series 83 Fixed window, thermal break, black frame

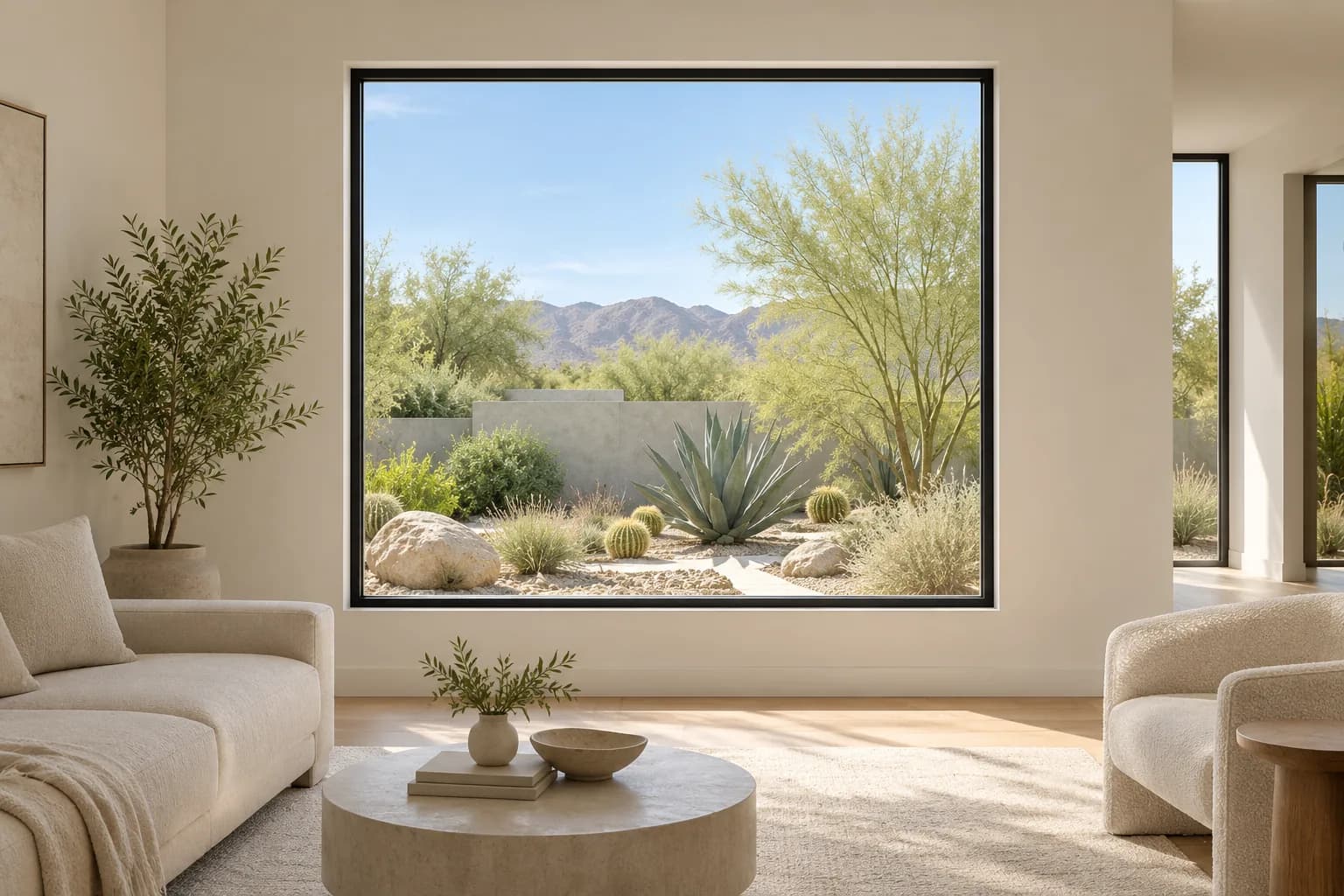

Series 83 Fixed window, living room, black frame

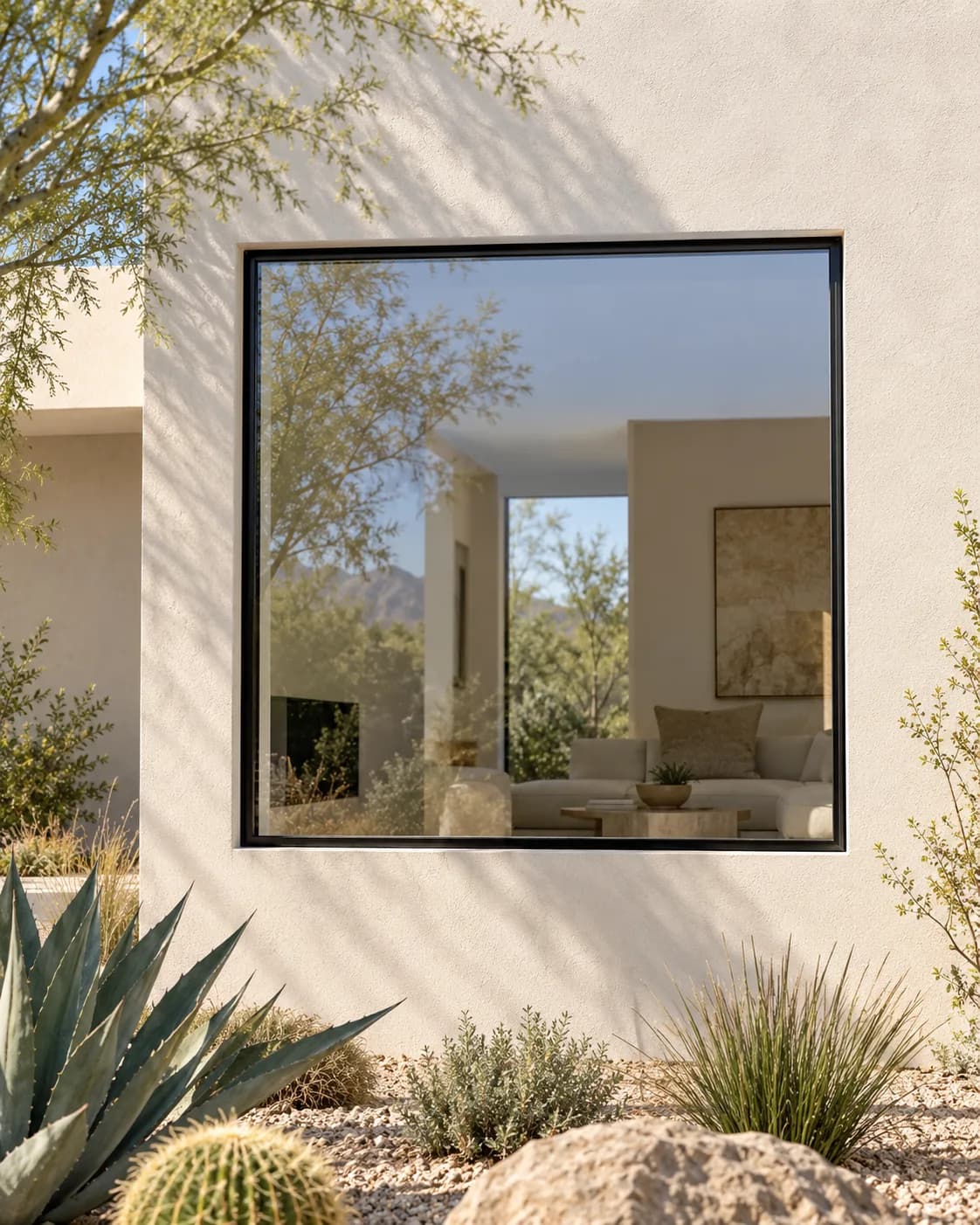

Series 83 Fixed window, exterior, black frame

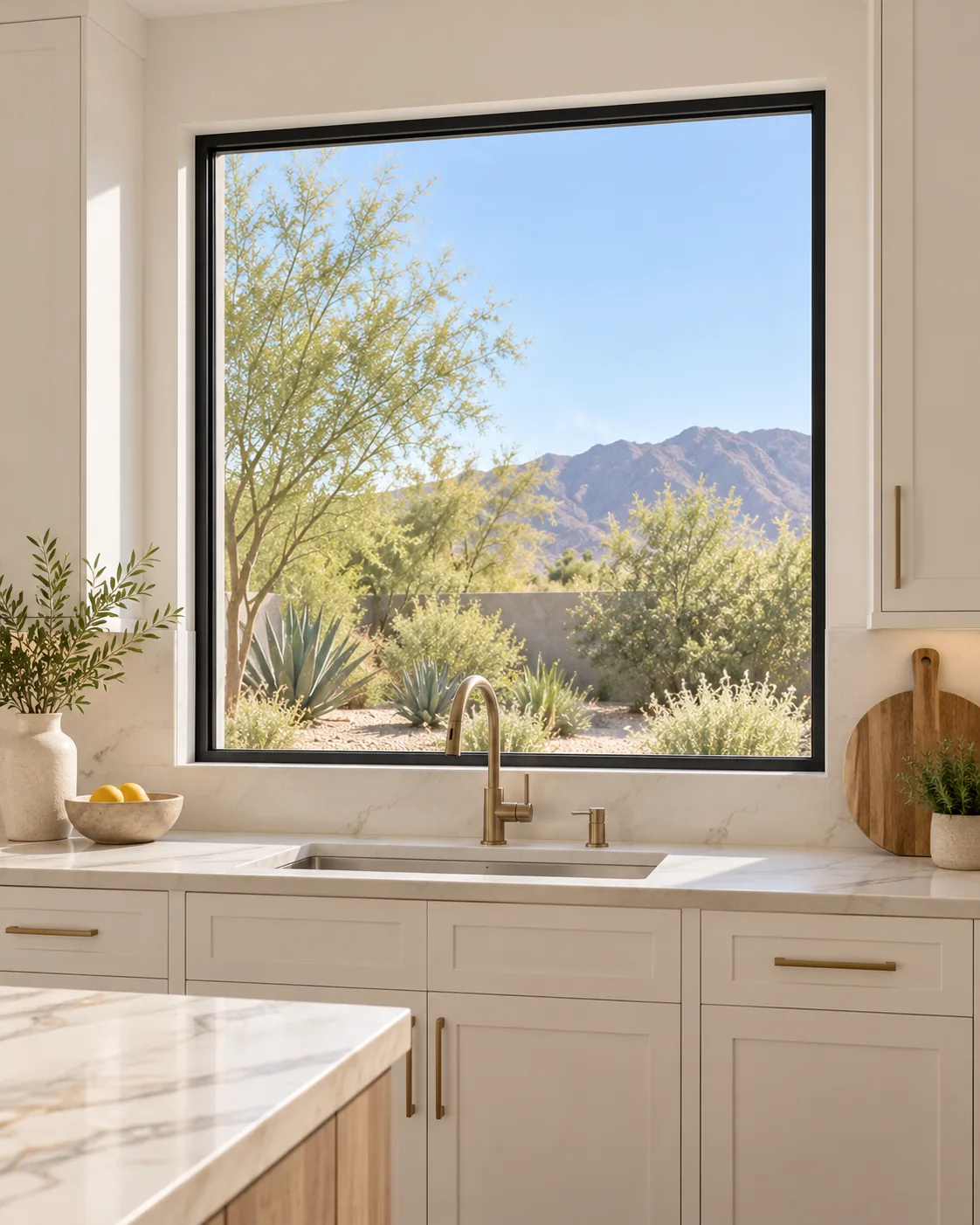

Series 83 Fixed window, kitchen · over the sink, black frame
Front elevation1 / 6
Series 83

Fixed window

Size
59 × 59"
Frame
Black
Glass
Quantity
Unit price—
Billed area—
Estimate · includes freight and duty to Las Vegas · excludes delivery
—
  • Factory-direct
  • Made to order
  • NFRC · U 0.18–0.33
  • AAMA/WDMA/CSA 101 · CW-PG60
  • Ops confirms by email
Lead time · production + transit— wks

A direct-glazed picture window, rated to CW-PG60.

Series 83 fixed window: glass set directly in the slim black frame for picture windows and sidelites, the best-insulating unit in the range.

  • Glass set directly in the frame, no sash
  • Glazing pocket up to 42 mm (1.65")
  • The best-insulating unit in the range
  • Ensinger polyamide thermal break
Made to the quoted size
Metric1500 × 1500 mm
Glazing pocketUp to 42 mm (1.65")
Series 83 Fixed window, thermal break, black frame
01

A frame that breaks the cold

An Ensinger polyamide strip separates the inside and outside aluminum, so frame conduction is fixed and the glass unit sets the rating.

Series 83 Fixed window, open · three-quarter, black frame
02

Built on a robotic line

Profiles are cut, CNC end-milled and assembled on an automated line, so corner joints and hardware pockets repeat to the tenth of a millimetre on every unit.

Series 83 Fixed window, front elevation, black frame
03

Rated and labeled

Thermal ratings are certified under NFRC 100, 200 and 500 and carry the temporary NFRC label. Every option meets California's Section 150.0(q) maximum of U 0.58.

From the factory

Built on a robotic line.

Profiles are cut, machined and assembled on an automated line with CNC end-milling. Each unit is made after ops confirms the order and ships by the container to Las Vegas.

  1. 01Ops confirms by email
  2. 02Production
  3. 03QC and crating
  4. 04Ocean and drayage to Las Vegas
  5. 05Pickup or delivery from Las Vegas

FAQ

Double or triple insulating glass, argon filled, low-E and tempered.
