Minimalist sliding door · 4 panels
- Size
- 192 × 96"
- Frame
- Black
- Operation
- OXXO · center panels slide
- Factory-direct
- Made to order
- NFRC · U 0.29–0.43
- AAMA/WDMA/CSA 101 · CW-PG40
- Ops confirms by email

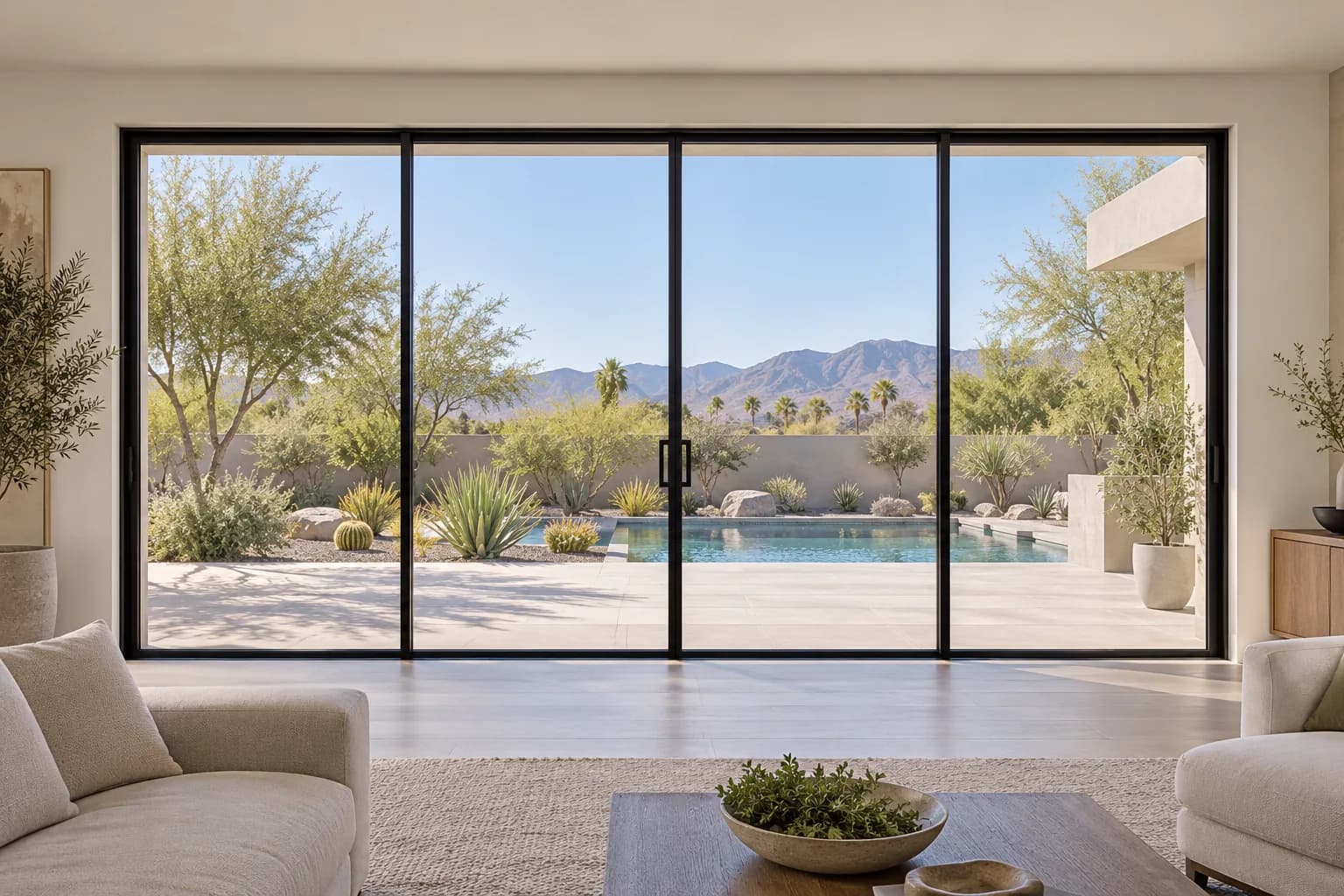

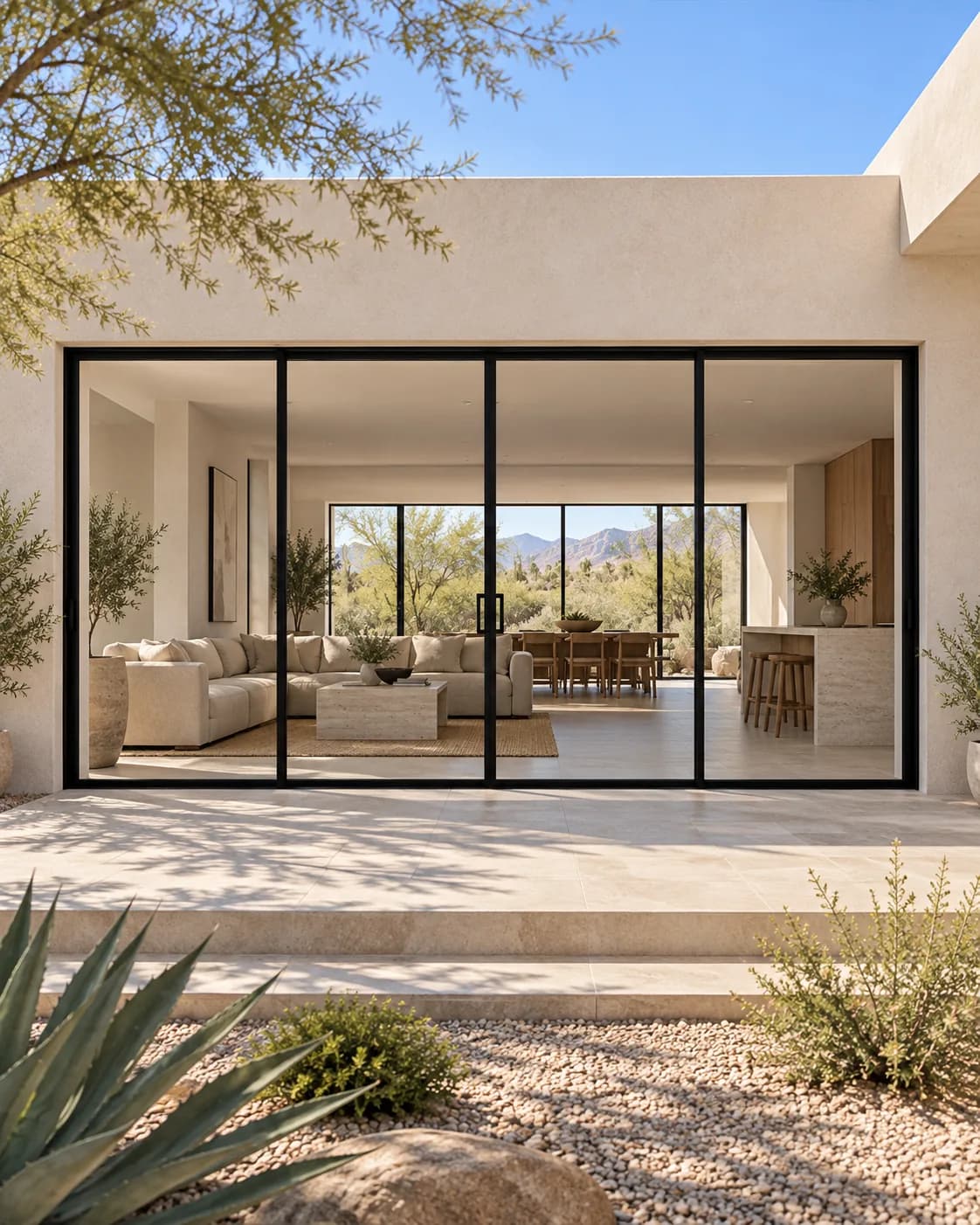

A minimal-frame sliding wall: two centre panels slide.

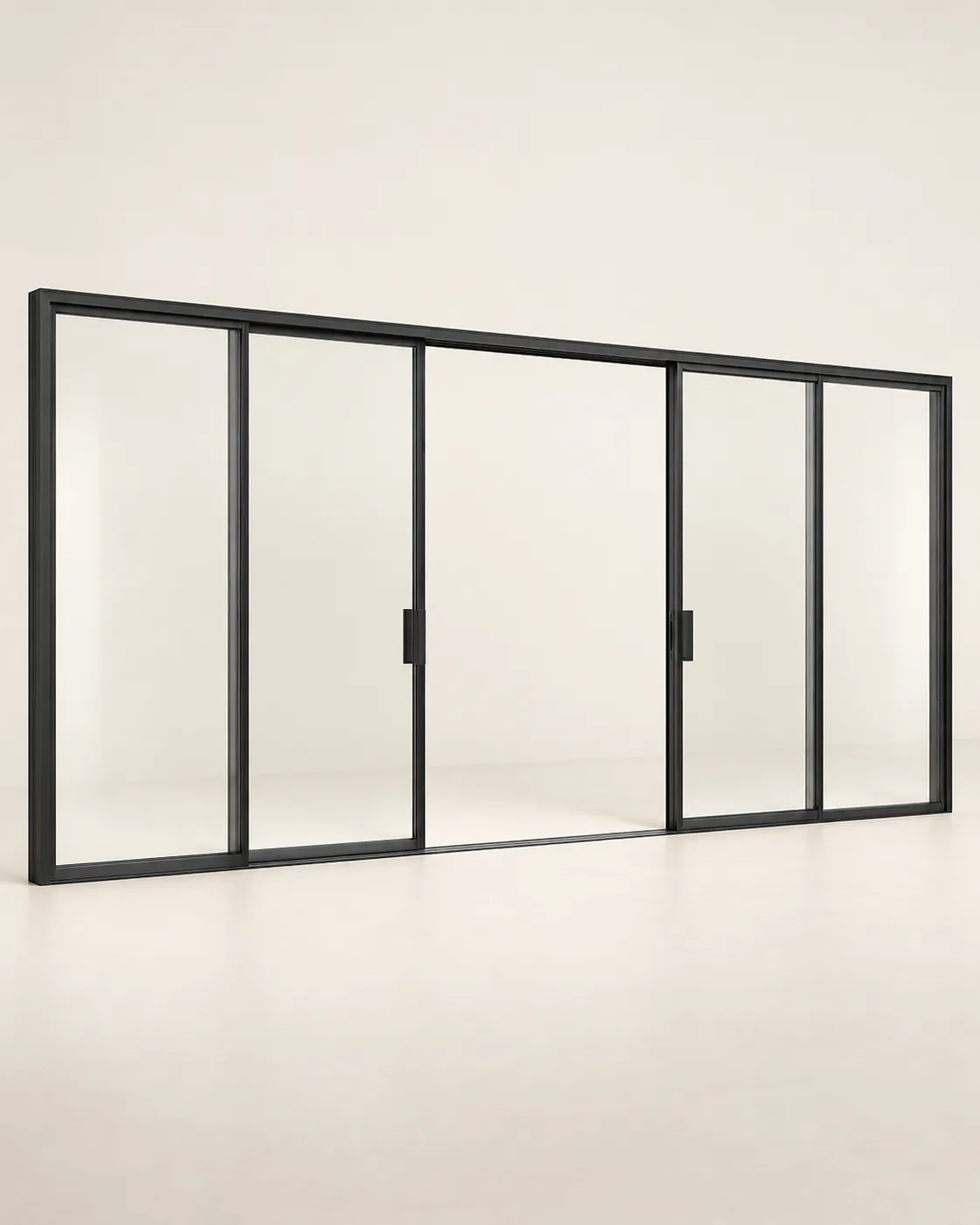

Series 175 sliding door with four panels in a slim black aluminum frame: the two centre panels slide past the fixed end panels (OXXO) on a recessed track with concealed drainage.
- Recessed track with concealed drainage
- Flush threshold option
- The centre pair opens from the middle
- Ensinger polyamide thermal break

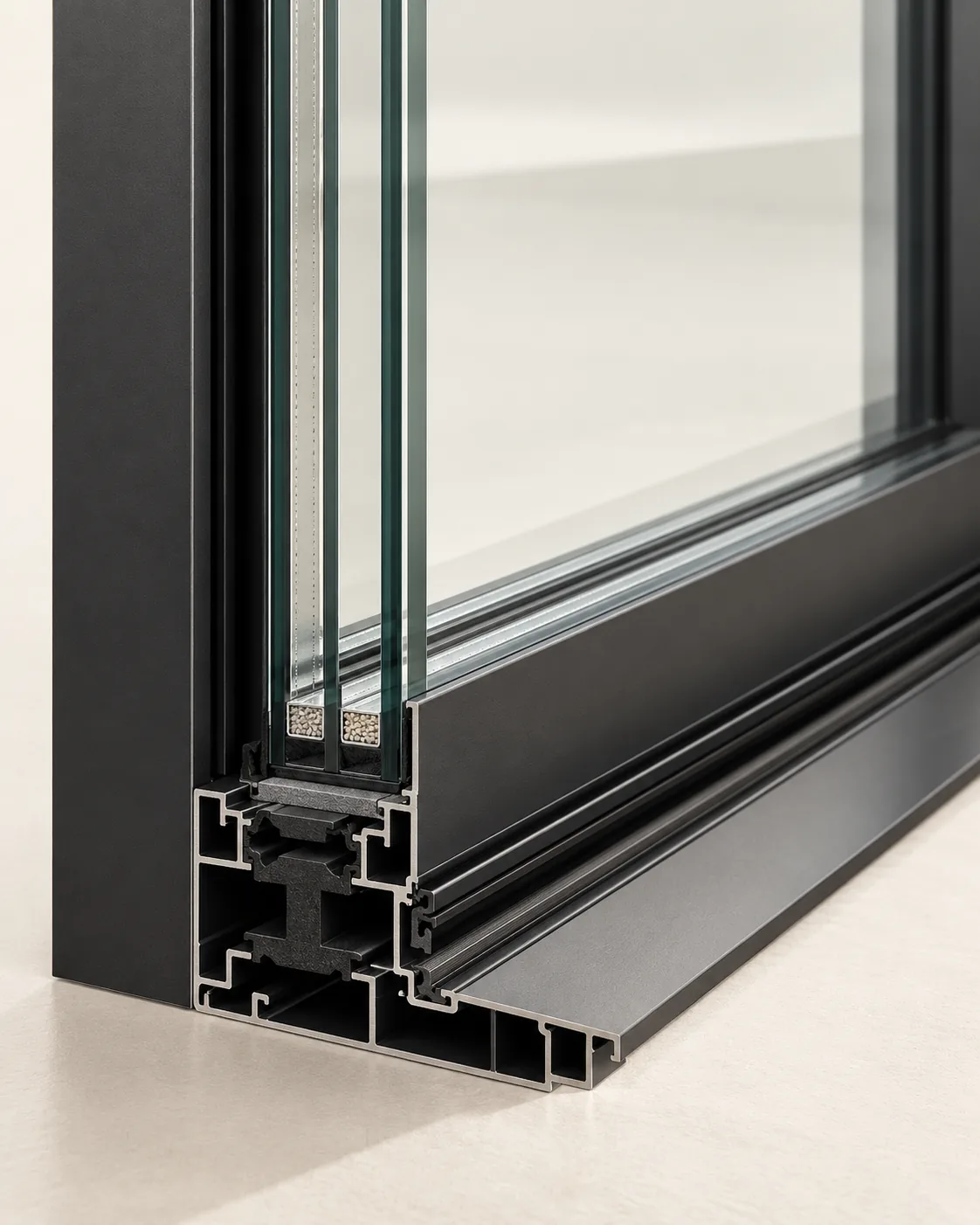

A frame that breaks the cold
An Ensinger polyamide strip separates the inside and outside aluminum, so frame conduction is fixed and the glass unit sets the rating.
Built on a robotic line
Profiles are cut, CNC end-milled and assembled on an automated line, so corner joints and hardware pockets repeat to the tenth of a millimetre on every unit.
Rated and labeled
Thermal ratings are certified under NFRC 100, 200 and 500 and carry the temporary NFRC label. Every option meets California's Section 150.0(q) maximum of U 0.58.
Built on a robotic line.
Profiles are cut, machined and assembled on an automated line with CNC end-milling. Each unit is made after ops confirms the order and ships by the container to Las Vegas.
- 01Ops confirms by email
- 02Production
- 03QC and crating
- 04Ocean and drayage to Las Vegas
- 05Pickup or delivery from Las Vegas
FAQ
Double or triple insulating glass, argon filled, low-E and tempered.
